High Pressure Homogeniser Tetra Pak TAS15/100BAR

Location

Hamburg, Germany

orCall +494072548640

Specifications

ManufacturerTetra Pak
ModelTAS15/100BAR
Year1995
ConditionUsed
Serial NumberT4615097
Stock Number1114
Type of MachineHomogeniser
Capacity3.200 liter per hour
Stages1 stage
Max. Pressure100 bar
Valve cylinderMushroom valves
ProductMilk
Piston diameter36 mm
Motor11 kW - 400 V - 21,5 Amp - 50 Hz - 1.460 rpm
Dimensions± 130 x 125 x 127 cm
Weight± 650 kg

Description

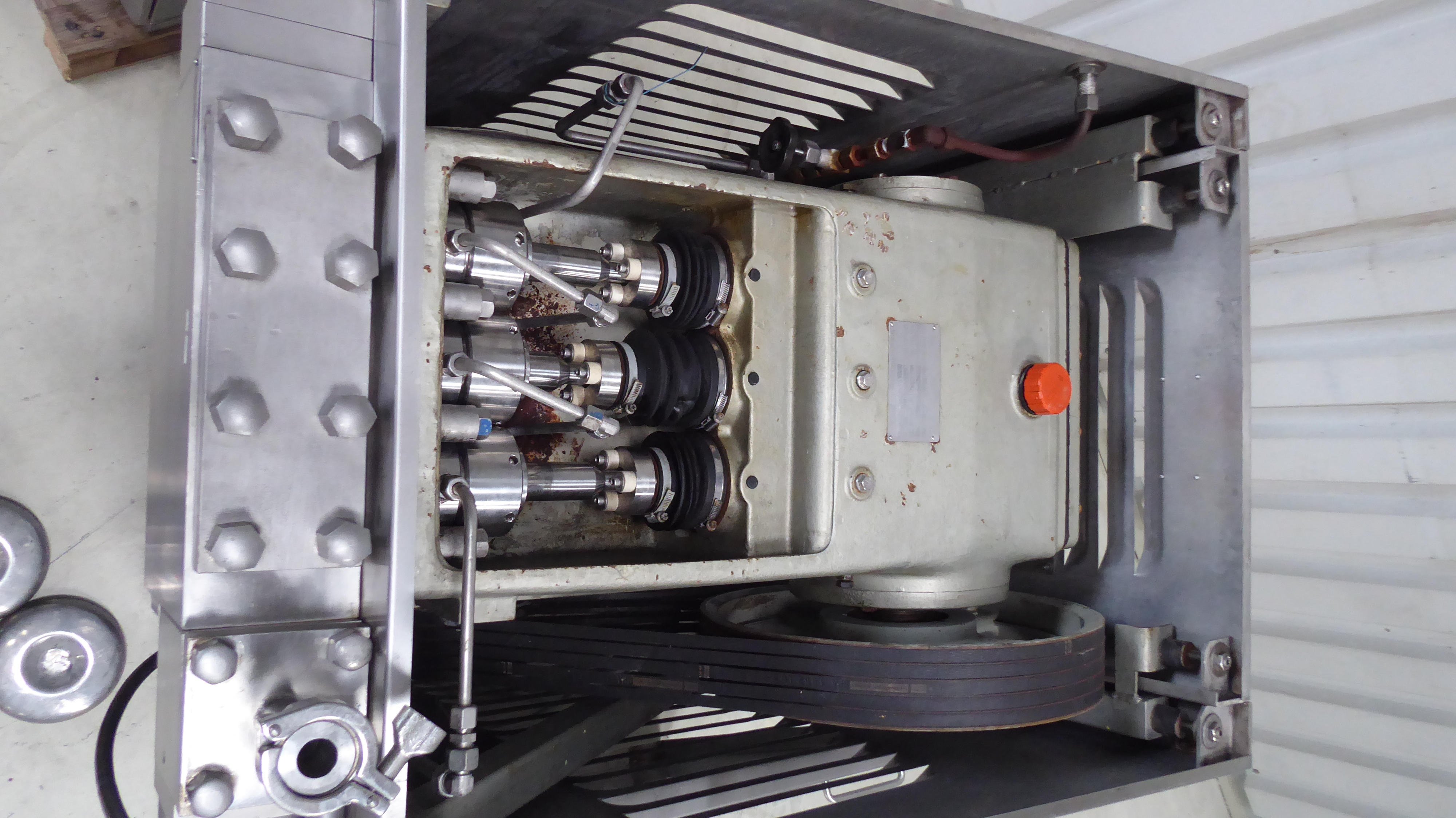

This Tetra Pak TAS15/100BAR homogeniser is a 3-cylinder machine which is designed for 3.200 liter per hour with a maximum pressure of 100 bar. The homogensier is equipped with 1-stage with mushroom valve cylinder. Hydraulic valves for pressure setting on the front panel. Piston diameter 36 mm. Manometer. Motor: 11 kW - 400 V - 21,5 Amp - 50 Hz - 1.460 rpm. Oil pumping system inside the machine. Stainless steel cladded. Machine mechanically reconditioned in 2011 by HST Maschinenbau GmbH including delivery of a stand alone control panel.
