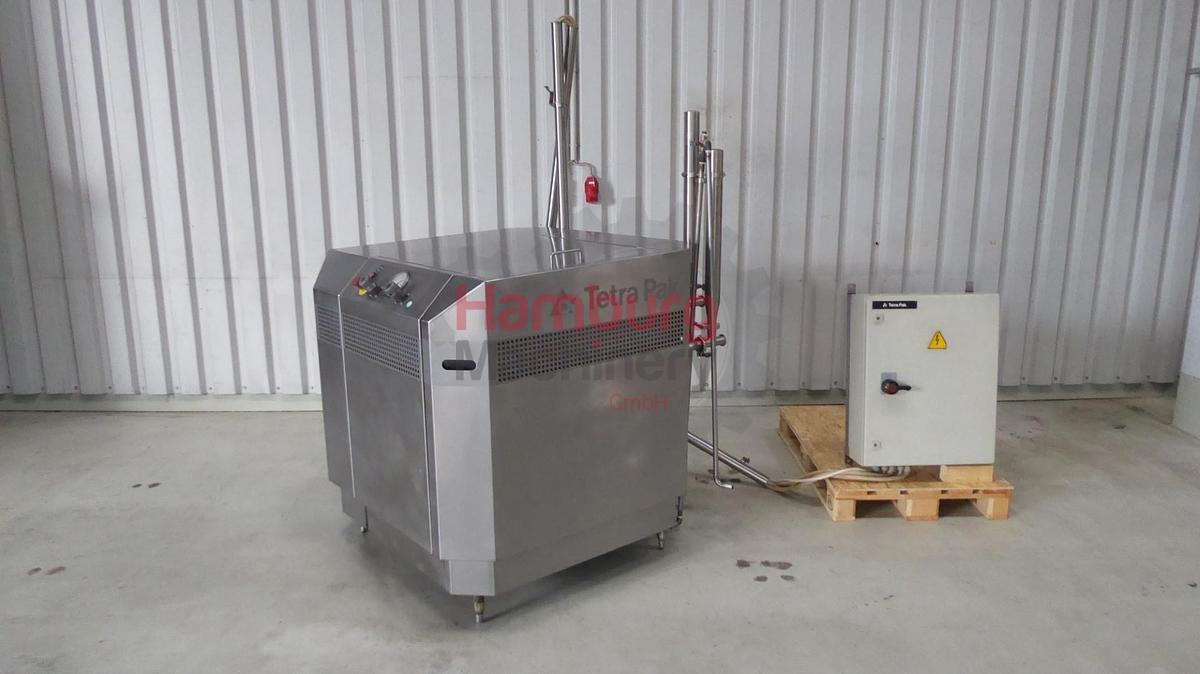

High Pressure Homogeniser Tetra Pak TA20/200BAR
orCall +494072548640
Specifications
| Manufacturer | Tetra Pak |
| Model | TA20/200BAR |
| Year | 1997 |
| Condition | Used |
| Serial Number | T58455167174 |
| Stock Number | 1093 |
| Type of Machine | Homogeniser |
| Capacity | 4.850 liter per hour |
| Stages | 2 stages |
| Max. Pressure | 200 bar |
| Valve cylinder | Mushroom valves |
| Product | Milk |
| Piston diameter | 45 mm |
| Motor | 30 kW - 380 V - 59 Amp - 50 Hz - 1.470 rpm |
| Dimensions | ± 130 x 125 x 127 cm |
| Weight | 1.350 kg |
Description
This Tetra Pak TA20 homogeniser is a 3-cylinder machine which is designed for 5.500 liter per hour with a maximum pressure of 200 bar. With the current motor the capacity of this homogeniser is ± 4.850 liter per hour. The homogensier is equipped with 2-stages with mushroom valve cylinder. Hydraulic valves for pressure setting on the front panel. Piston diameter 45 mm. Manometer. Overpressure valve. Motor: 30 kW - 380 V - 59 Amp - 50 Hz - 1.470 rpm. Oil pumping system inside the machine. Stainless steel cladded. 2x pulsation dempers. Including control panel with main switch and motorgroup.
