APV-Schröder Gaulin 5283 MC 45-2,5TPS
Specifications
| Manufacturer | APV-Schröder Gaulin |
| Model | 5283 MC 45-2,5TPS |
| Year | 1986 |
| Condition | Used |
| Serial Number | 86L32647 |
| Stock Number | 936 |
| Type of Machine | Homogeniser |
| Capacity | 20.000 liter per hour |
| Stages | 2 stages with Micro-Gap valve |
| Max. Pressure | 172 bar |
| Valve cylinder | Poppet valves |
| Piston diameter | 76 mm |
| Motor | 90 kW - 380 V - 172 Amp - 50 Hz - 1485 rpm |
| Dimensions | 215 x 130 x 175 cm |
| Weight | ± 4.000 kg |
Description

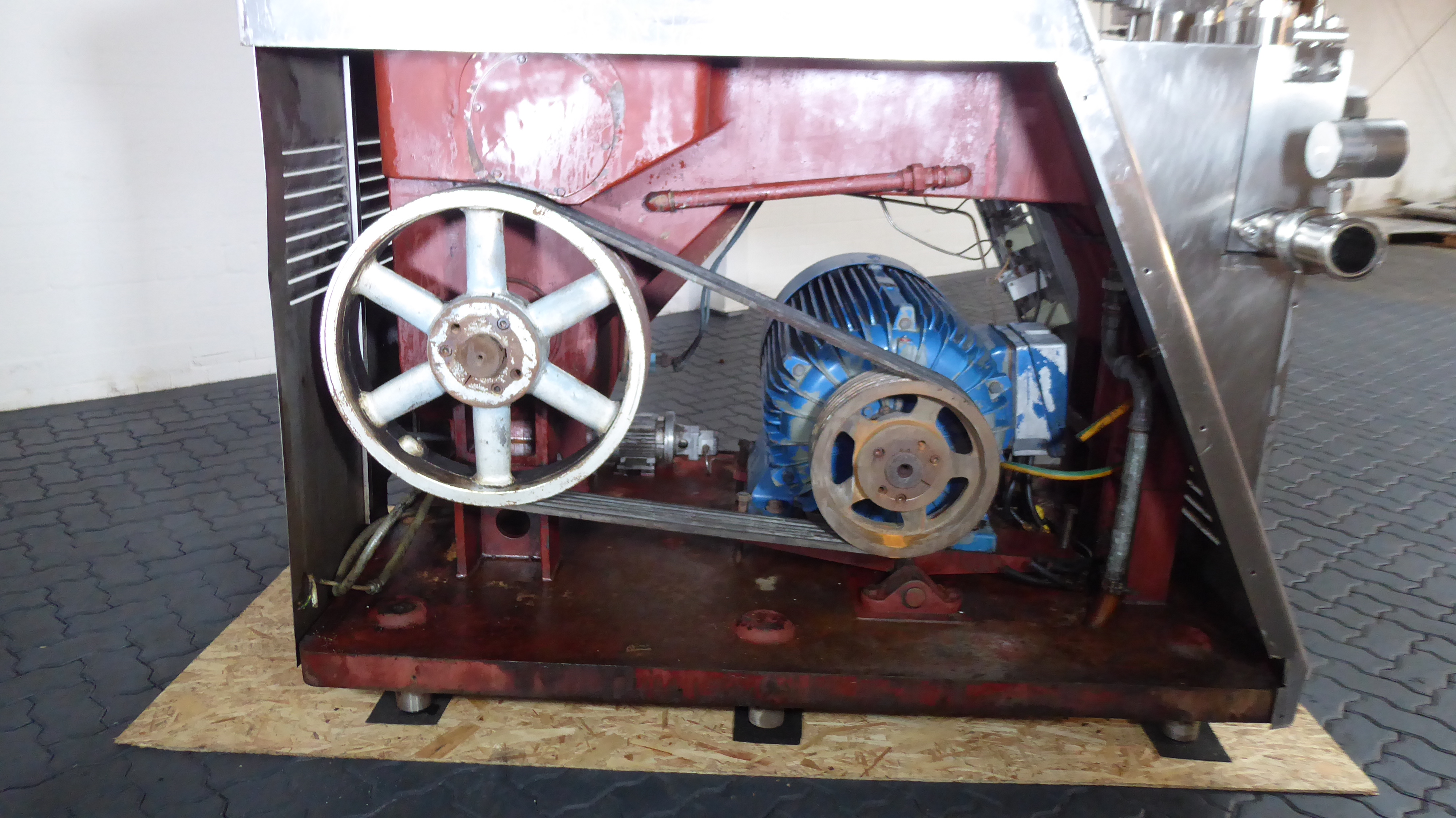

This APV Gaulin MC 45 homogeniser is a 3-cylinder machine which is designed for 20.000 liter per hour with a maximum pressure of 172 bar. The homogensier is equipped with 2-stages with poppet valve cylinder and a MICRO-GAP homogenizing valve assembly which is especially for non-abrasive, low viscosity dairy products. The highly efficient MICRO-GAP valve will enable to operate at up to 40% lower pressure, while giving you the same or better product quality and saves energy and reduction in the machine drive-end loading. Manometer on the inlet and manometer on the stages. Piston diameter: 76 mm. Motor: 90 kW - 380 V - 172 Amp - 50 Hz - 1485 rpm. Oil pumping system inside the machine. Stainless steel cladded. Feetplates available.
General application:
High pressure homogenizers are used to break up the fat globules contained in the milk under high pressure and thus distribute them evenly in the milk. The fat droplets are crushed by forcing the milk through fine nozzles under high pressure. This process prevents a layer of cream from forming on the milk.
